Description

4 Hi Hot Rolling Mill is a type of rolling mill used in metalworking, particularly in the steel and aluminum industries, to reduce the thickness of metal slabs at high temperatures. The hot rolling mill includes four rolls arranged in a vertical stack, including two work rolls (smaller in diameter, in direct contact with the hot metal), two Backup rolls (larger in diameter, supporting the work rolls to prevent bending under high rolling forces). The whole 4 Hi Cold Rolling Mill is composed of heating furnace(which preheats slabs before rolling), descaling device(which removes oxide layers before rolling), cooling system (which controls temperature during rolling), Coilers (which winds the rolled strip into coils)

Application

Hot rolling mills are essential in metal processing industries, primarily for shaping large metal slabs into thinner, more usable forms while the material is heated above its recrystallization temperature.Following some applications:
1. Steel Industry
 Production of Hot Rolled Coils (HRC): Used in automotive, construction, and appliances.

 Plates & Sheets: For shipbuilding, pipelines, and structural beams.

 Railroad Rails & Wheels: High-strength tracks and components.

 Structural Shapes: I-beams, channels, and angles for construction.
•
2. Aluminum Industry
 Aluminum Plates & Sheets: For aerospace, automotive (body panels), and packaging (cans).
 Foils & Thin Strips: Further cold-rolled for food packaging and electronics.
3. Copper & Brass Industry
 Copper Strips & Plates: For electrical wiring, transformers, and heat exchangers.
4. Special Alloys (Stainless Steel, Titanium, etc.)
 Stainless Steel Sheets: For kitchenware, medical equipment, and chemical tanks.
 Titanium Plates: Aerospace and military applications.

Q & A

1. Q: What kinds of experience do you have in producing 4 Hi Hot Rolling Mill?
A: We have rich experience of producing 4 Hi Hot Rolling Mill ,till now more than 150 sets 4 Hi Hot Rolling Mill produced and sold to customers local China and all over the world.

2. Q: What is delivery time of 4 Hi Hot Rolling Mill ?
A: 150 days after contract confirmation.

3. Q: What is your machine speed?
A: Production speed is depending on customer’s requirement, accordingly to customer’s speed requirement , and invest budget, we can design the cold rolling mill speed maximum 1500m/min.

4. Q: What is your after-sales service system?
A: We will send engineer to customer’s factory for machine installation and commissioning, if customer require. We provide whole life service, If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.

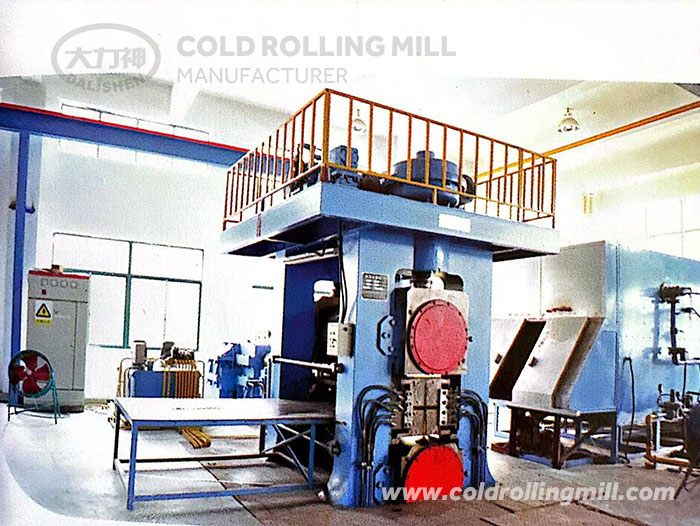

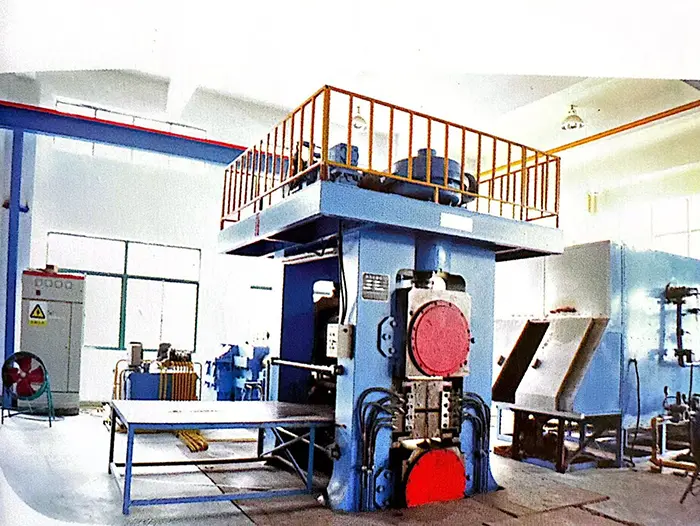

Machine Photo
